500W 80 PLUS Power Supply
Power Output: 500W
Efficiency: 80 PLUS Certified – 80/80/80% Efficiency at 20/50/100% Load
ATX Standard: ATX 12V 2.31 Compatible
PFC: Active PFC
Capacitors: 100% Japanese Rubycon Capacitors
Protection: OVP / OPP / OTP / SCP / SIP / UVP
Fan: 120mm Silent Hydraulic Bearing Fan
Cable Type: Standard Black Cables
Power Cord: 1.5m EU Power Cable
Connectors: 20+4 PIN x 1, 4+4 PIN x 2, PCI-E 6+2 PIN x 2, SATA x 4, MOLEX x 2
Cable Length: MBO 550mm, CPU 650mm x 2, GPU 450mm x 2, HDD/SSD 450/150mm x 2, FAN 450/150mm
AC Input: 230Vac / 6A / 50Hz
DC Output: 12V / 5V / 3.3V : 41A / 10A / 10A
Material: SPCC Metal
Net Weight: 1.55kg
Gross Weight: 1.865kg
Product Dimension: 140mm(L) x 150mm(W) x 86mm(H)
Package Dimension: 270mm(L) x 201mm(W) x 107mm(H)
Qty per Carton: 10
Carton Net Weight: 15.50kg
Carton Gross Weight: 18.65kg
Carton Dimension: 555mm(L) x 288mm(W) x 432mm(H)
Color: Black
Certifications: RoHS, CE
Warranty: 36 Months

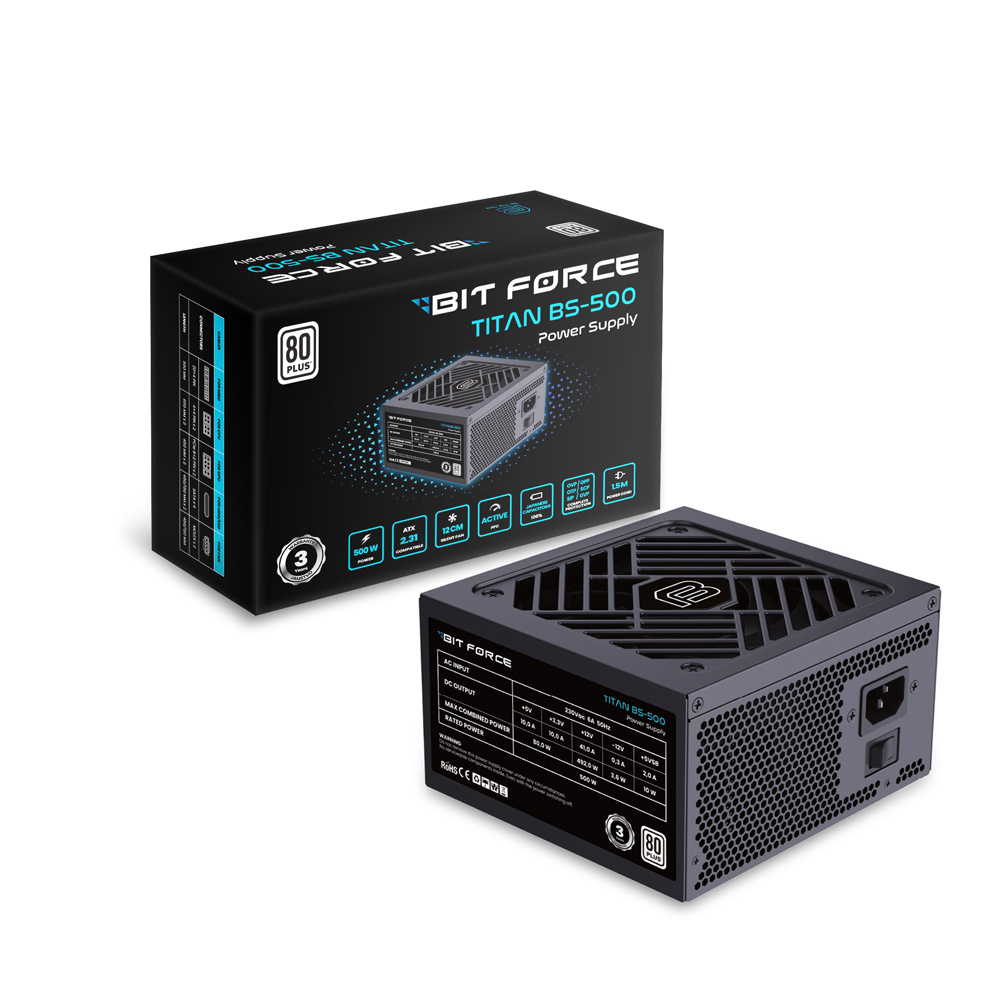

BIT FORCE TITAN BS-500. A Reliable Entry into Quality Power Delivery.
With 500W of power and 80 PLUS efficiency, the TITAN BS-500 is an ideal choice for compact PC builds, HTPC systems, and office configurations. Designed in accordance with the ATX 2.31 standard, it offers broad compatibility with mainstream hardware and delivers reliable power for SSDs, mid-range graphics cards, and energy-efficient processors. Integrated protection features and a quiet hydraulic bearing fan ensure long-term reliability and silent operation, while its compact form factor enables quick and hassle-free installation in smaller chassis without compromising performance.
STANDARD EFFICIENCY
80 PLUS certification helps reduce power consumption, improve energy utilization, and minimize system heat generation.
BROAD COMPATIBILITY
ATX 2.31 compliance ensures seamless support for a wide range of both older and modern PC configurations.
STABLE ELECTRONICS
Active PFC technology and premium Japanese Rubycon capacitors provide stable power delivery, enhanced durability, and long-term operational reliability.
QUIET COOLING
The 120mm silent hydraulic bearing fan maintains efficient cooling performance while keeping noise levels low during everyday operation.
MAXIMUM PROTECTION
Comprehensive protection features including OVP, OPP, OTP, SCP, SIP, and UVP help safeguard critical components against electrical faults and power-related risks.
ROBUST RELIABILITY
Built with durability in mind, the TITAN BS-500 is an excellent choice for dependable budget-oriented systems that require stable and consistent power delivery.
